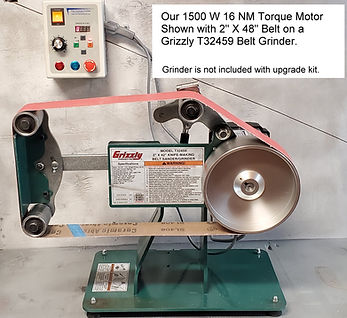

2 HP 1500 Watt Computer Controlled Servo Motor With external Speed Control Switch.
Built to fit Smithy model CB-1220
Number 1~6 are proven as seen in the images.
This is # 7 It comes with our new strait shaft motor and our new steped pulley.
See stepped pulley included image. Other pulleys are available to swap out if you so choose.

Custom Built When You Order:
Lead time is up to 5 days.

Comes with a stepped belt drive dounle grrove sheave.
These are custom made by us and a direct fit to our motors.
This greatly reduces runout and or vibration.

Sold with a custom built matching control unit:
Always place above out of the way of metal fileings and contaminates.
Speed is programmable for any range between 300 to 3,000 RPM. See video.

Current motor mount design:
Allows for our servo motor to be installed in the original location.
Just cut the plate a bit to allow for belt tension and bolt in place (no cutting was required with number 1).
See images.

Current motor to control unit wiring:
All motors sold for this system now have the longer wires between the
control unit and the motor (2022 version released Oct 2021). This ads distance to mount the standard plastic housing version control unit further away from the machine. It also eases installation of the custom aluminum housing control unit upgrade.

See images for measurements.
Note: the maximum distance between control unit and motor is now 28" (was 22").
Custom builds with aluminum control unit require the longer wiring between motor and control unit.

Runs on typical 110 to 120 volt AC household power supply's. Ask about 220/250V AC

Smithy CB-1220 Combo 2 hp Servo Motor Upgrade Kit Lathe Milling Machine

$440.00

Excluding Sales Tax

Quantity

A complete servo motor as seen in images.

A stand alone and programmable custom built servo motor driver with overload protection and internal speed control.

A welded steel motor mount designed to fit the Smithy AT300 seen in images. Look close at images as some of these
machines have a different mounting system.

The pulley comes installed on the motor
The motor speed can be programmed to operate in any range chosen by the user.
Between 200 and 3,000 RPM's.

The full range of speed (RPM's) can also be controlled with just the speed control knob.

Speed control programming only requires a few easy steps.

Reverse is simple, just hold the yellow button for a few seconds.

Programming includes the ability to set bottom and top RPM range separately. In other words you can
program the system to run the spindle at any speed or range of speeds you choose (see below).
Slowest speed achievable: Motor 200 RPM. (Below 300 is not recommended). Highest speed: 3,000 RPM.

Soft start is programmable and will be set as soft as possible when you receive this motor. This program is very effective in reducing drive belt wear etc.

Braking strength is also programmable and will be set as low as possible. Personally I wish I could set it lower.

Self diagnostics with fault code chart available on line.

Power out safety. Speed control knob must be manually returned to zero/stop after a power failure.

Use at your own risk. Our liability is limited to the purchase price of this item.
Watt: 1500 (2 HP)

Voltage: 110V - 120V single phase AC. (220 - 250V AC single phase is available by request)

HZ: 60

Torque: 16 N.M.

RPM: 200 to 3,000 RPM in 10 RPM increments.
Note: Manufacturer recommended 300 to 3,000 RPMs
My personal testing results: This motor runs best between 300 and 3,100 RPMs.

Spindle speed results in the test Smithy:
We have none at this time.
Certain items are not returnable (See listings). Items costing less than $15 each are not returnable.

No reason is required.

Buyer pays return shipping.

Buyer provides tracking number that shows the item is in possession of the return shipping company before the 30 day time period runs out.

30 day time period starts when tracking shows original order as in possession of USPS.

Buyer to provide tracking # and shipping company name to be e mailed to servomotorkit@gmail.com within 36 hours of when issued.

Return must be shipped through USPS, UPS or FedEx.

Defective products are always returnable or refundable but will require documentation. See warranty time limits as they are directly related to if a product qualify's as defective. Shipping is always refunded on defective products. You are required to provide proper documentation of said defect.

Shipping is not refundable simply because you changed your mind or the product does not fit. It is your responsibility to look up and or measure to insure proper fit and suitability for your intended use. If you are not sure, ask us. If we say it fits in an e-mail or text message and it does not; than we pay the shipping instead of you.

All items returned must be in like new and unused condition:
This includes original packaging.

Missing packaging will result in a restocking charge of up to 10%

Installed items will not be refunded or charged up to 50% to restore and resell as a refurbished unit.

Swapping out parts will result in no refunds, all warranty's voided and no new orders accepted.
Try honesty instead, we will be happy to assist and find a solution that keeps both of us happy.
Limited 180 day parts warranty. Labor is buyers responsibility:
See details, what's covered and for how long etc below. Shipping both ways for all parts returned for warranty is the buyers responsibility. Parts returned will be inspected for unique identification mark and or abuse. If found to be abuse or missing the identity mark, no warranty exchange part will be provided and buyer will be required to pay shipping to get their parts back. Warranty exchange parts may or may not be new but instead refurbished or demos that I have from previous builds. Warranty starts on the day our records show the system as paid and not the date the item is actually received.

Servo Motor. - I will exchange a defective servo motor for up to 180 days. Buyer must return the motor + the control unit + the speed control switch for inspection and testing. Additionally original packaging such as Styrofoam package inserts must be used to return these parts.

Computer control unit. - I will exchange a defective control unit PCB for up to 180 days. Buyer must return the motor + the control unit + the speed control switch for inspection and testing. Additionally original packaging such as Styrofoam package inserts must be used to return these parts.

Improper instalation or abusive operation is not warrenty.
All after the sale customer support is done by text to the number included in the box and not through eBay.

All returns during the 14 day return window are done through eBay.

Ask questions before ordering.
