2026 Model 2 HP 1,500 Watt Computer Controlled Servo Motor.
Universal Face Mount 2 HP 1500 Watt Computer Controlled Servo Motor.

2026 Controller offers e stop + Reverse on the fly and more.

Upgrade from 2024 version includes:
New main board with 20 amp mosfets instead of 15 amp mosfets.
USA version main power cord. 18ga in proper colors (black, white & green) versus 22ga in (blue, brown & GN/Y).
See photos and videos with this listing.

Truly flat face eases fitting motor up to other flat surfaces.
Now comes with M8 X 25 stainless button head bolts. These work well even if you drilled the hole too large.

Strait shaft works best for:

Horizontal pulley slide and lock into alignment
Multi Sheave pulleys.
We have direct fit 15 mm bore pulleys.
There is also an adapter available to fit 5/8" bore 3/16" key sheaves.

Sold with a custom built matching control unit.
Speed is programmable for any range between 300 to 3,500 RPM
Note: Settings are limited to 10 RPM intervals.

See images for measurements.
Note: the maximum distance between control unit and motor is 28 inches.

Runs on typical 110 to 120 volt AC household power supply's

Hi performance USA version AK30, 2AK30 and others are available at additional cost.

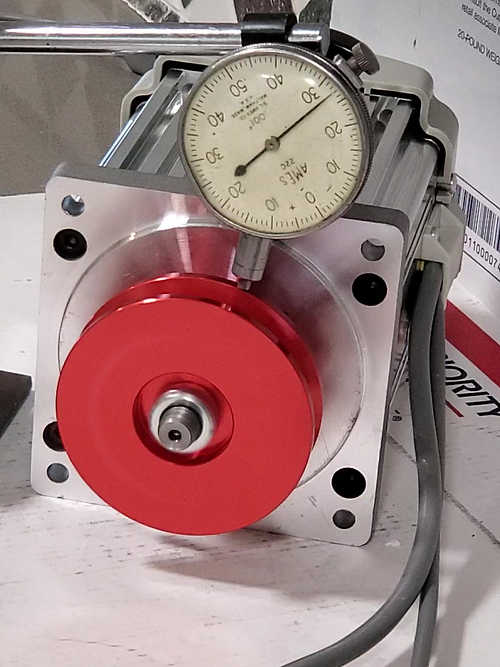

See the video about the new pulley/sheaves made in red anodized aluminum. These pulleys run much smoother.Run out is less than 0.005" usually less than 0.003"

Motor programming + spindle speeds and Reverse:

The motor speed can be programmed to operate in any range chosen by the user.
Between 300 and 3,500 RPM's.
Note: Settings are limited to 10 RPM intervals.
The full range of speed (RPM's) can also be controlled with just the speed control knob.
Speed control programming only requires a few easy steps.
Reverse is simple, just press the blue button.
Programming includes the ability to set bottom and top RPM range separately. In other words you can program the system to run the spindle at any speed or range of speeds you choose (see below).
Slowest speed achievable: Motor 200 RPM. (Below 300 is not recommended).
Highest speed: 3,500 RPM.
Soft start is programmable and likely set as soft as possible when you receive this motor. This program is very effective in reducing drive belt wear etc.
Braking strength is also programmable and likely will be set as low as possible.
Self diagnostics with fault code chart and programming instructions available on line.
Power out safety. Speed control knob must be manually returned to zero/stop after a power failure.
P-17 is locked to our 1500W motors so it cannot be acidently set wrong and cause issues.
Use at your own risk. Our liability is limited to the purchase price of this item.

California Prop 65:
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
AVERTISSEMENT:
Cancer et Troubles de l’appareil reproducteur
www.P65Warnings.ca.gov

1500W Servo Motor and Driver. 2HP 16 NM Torque Strait shaft Flat Face

$360.00

Excluding Sales Tax

Quantity

Motor Specifications:

Watt: 1500 (2 HP)

Voltage: 110V

HZ: 60

Torque: 16 N.M.

RPM: 200 to 3,000 RPM in 100 RPM increments.
Note: Manufacturer recommended 500 to 3,000 RPMs
My personal testing results: This motor runs best between 300 and 3,100 RPMs.
A complete servo motor as seen in images.

A programmable custom built stand alone servo motor driver with internal speed control and overload protection.

Key way 5 X 5 x 25 mm

Four M8 X 25 stainless button head bolts.
Note: M8 bolts will be a set of 4 that are 16 to 25 mm long

On line active programing instructions
Limited 90 to 180 day parts warranty.
Labor is buyers responsibility:
See details, what's covered and for how long etc below. Shipping both ways for all parts returned for warranty is the buyers responsibility. Parts returned will be inspected for unique identification mark and or abuse. If found to be abuse or missing the identity mark, no warranty exchange part will be provided and buyer will be required to pay shipping to get their parts back. Warranty exchange parts may or may not be new but instead refurbished or demos that I have from previous builds. Warranty starts on the day our records show the system as paid and not the date the item is actually received.

Servo Motor. - I will exchange a defective servo motor for up to 180 days. Buyer must return the motor + the control unit + the speed control switch for inspection and testing. Additionally original packaging such as Styrofoam package inserts must be used to return these parts.

Computer control unit. - I will exchange a defective control unit PCB for up to 90 days. Buyer must return the motor + the control unit + the speed control switch for inspection and testing. Additionally original packaging such as Styrofoam package inserts must be used to return these parts.

Improper instalation or abusive operation is not warrenty.
Certain items are not returnable (See listings). Items costing less than $15 each are not returnable.

No reason is required.

Buyer pays return shipping.

Buyer provides tracking number that shows the item is in possession of the return shipping company before the 30 day time period runs out.

30 day time period starts when tracking shows original order as in possession of USPS.

Buyer to provide tracking # and shipping company name to be e mailed to servomotorkit@gmail.com within 36 hours of when issued.

Return must be shipped through USPS, UPS or FedEx.

Defective products are always returnable or refundable but will require documentation. See warranty time limits as they are directly related to if a product qualify's as defective. Shipping is always refunded on defective products. You are required to provide proper documentation of said defect.

Shipping is not refundable simply because you changed your mind or the product does not fit. It is your responsibility to look up and or measure to insure proper fit and suitability for your intended use. If you are not sure, ask us. If we say it fits in an e-mail or text message and it does not; than we pay the shipping instead of you.

All items returned must be in like new and unused condition:
This includes original packaging.

Missing packaging will result in a restocking charge of up to 10%

Installed items will not be refunded or charged up to 50% to restore and resell as a refurbished unit.

Swapping out parts will result in no refunds, all warranty's voided and no new orders accepted.
Try honesty instead, we will be happy to assist and find a solution that keeps both of us happy.
All after sale support is done via SMS text and or voice.
Our phone number is in the included paperwork. Text us first so we can add you to caller ID. Than voice calls will be accepted.

After warranty support:
There is nothing worse then having an expensive item break 2 days after the warranty expires. Please contact me
As long as there is no abuse, I will offer a solution. This often includes parts at cost and free installation. That
is as long as you communicate and pay shipping both ways.
Yes, I keep control boards in stock for this reason. I also keep motors, belts and
every part used to build these in stock. Just contact me and we will have you up and running within days, not 6 months
waiting for parts from China.
